High Clamping Force
Flat under-head profile maximizes contact area, distributing pressure evenly to prevent material deformation.
DIN 7985 Cross Recessed Raised Cheese Head Screws
- Standard: DIN 7985
- Material: SUS304, SUS316, SUS410, Carbon Steel
- Thread Size: M6-M10
- Surface Treatment: Plain, Zinc Plated, HDG, Dacromet, Ruspert
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 – 45 Days
Product Overview
Product Application
DIN 7985 is a standard for cross recessed pan head machine screws, designed for precise and reliable fastening in mechanical and electrical assemblies.
These screws feature a rounded pan head, a cross drive (Phillips or Pozidriv), and a metric machine thread, making them ideal for controlled torque applications where surface clamping strength is required without countersinking.
Today, DIN 7985 is technically replaced by DIN EN ISO 7045, but it remains widely used in global procurement and engineering drawings.

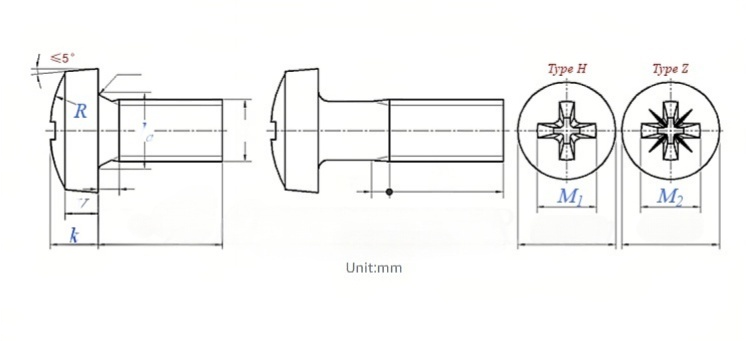

Draw

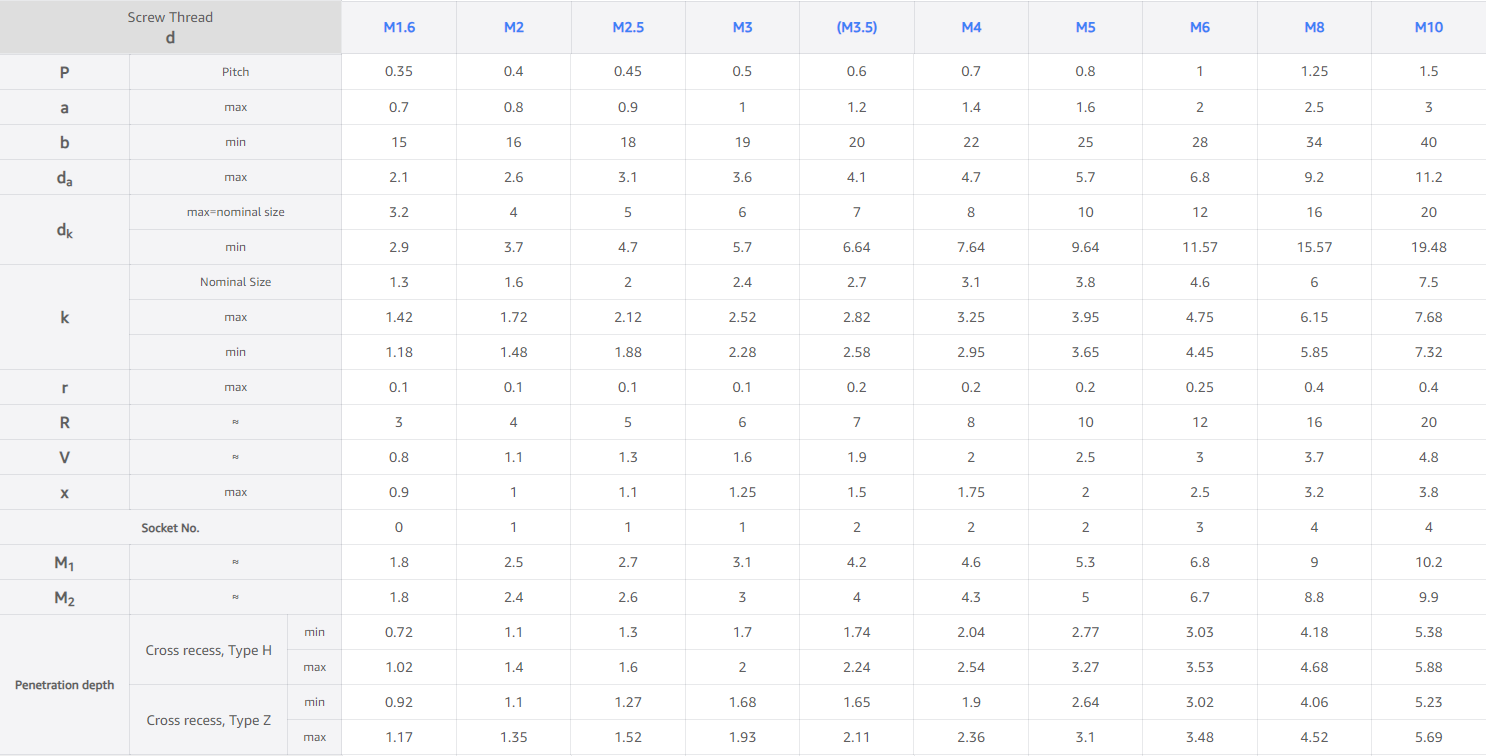

Specification
The Difference between DIN 7985 & ISO 7045
While practically interchangeable in most commercial applications, there are subtle geometric differences specified in the standards:
-
Head Dimensions: ISO 7045 slightly modifies the head diameters (dk) and head heights (k) for specific sizes (e.g., M3, M4, M5) compared to the older DIN 7985 blueprint to optimize material distribution and drive depth.
-
Penetration Depth: The cross-recess penetration depths can vary minutely between the two standards, affecting the maximum seating torque before cam-out occurs.
Product Advantages
Efficient Assembly
Deep cross recess ensures self-centering and high torque transmission, optimized for automated lines.
Safe & Compact
Rounded pan head eliminates sharp edges to prevent snagging while minimizing spatial interference.
Common Questions
What is the difference between DIN 7985 and ISO 7045?
ISO 7045 is the superseding standard; they are functionally interchangeable with minor variations in head dimensions.
Can DIN 7985 be used in countersunk holes?
No. The pan head sits above the surface; countersunk applications require DIN 965.
What are the common materials and property classes for DIN 7985?
Carbon steel (Class 4.8/5.8/8.8, zinc-plated) and stainless steel (A2-70/A4-70).
What is the primary application of DIN 7985?
Fastening thin metal plates or soft materials in electronics, appliances, and machinery enclosures.
