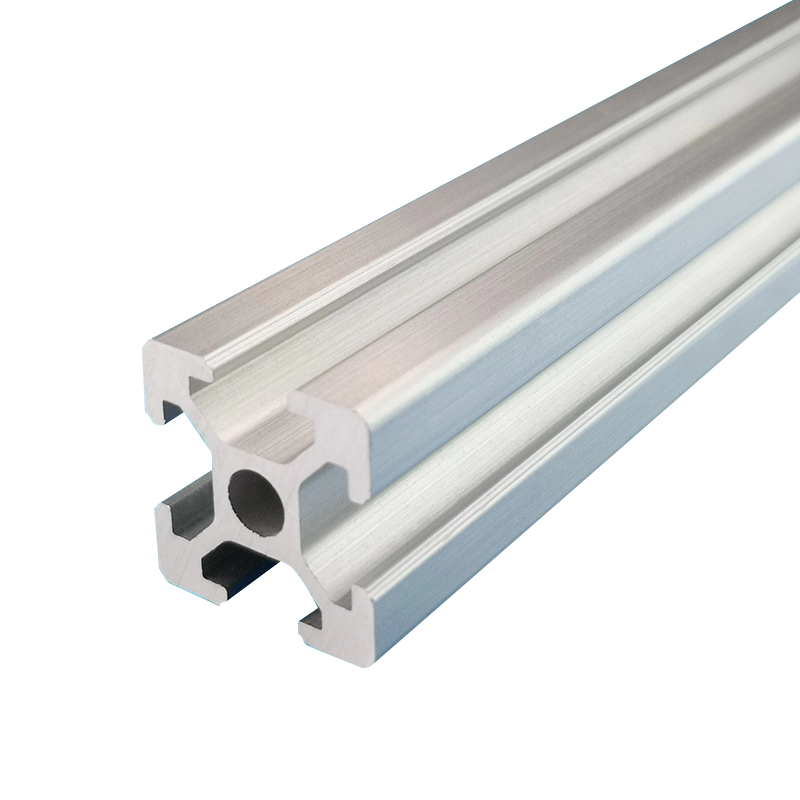

20 Series
Light frameworks, small equipment.
industrial aluminum profile
Generally, Industrial aluminum profiles are extruded aluminum-alloy T-slot or V-slot structural profiles used in equipment frames, automation lines, fixtures, and workstations. They offer high strength, low weight, strong modularity, easy assembly without welding, and full reusability, making them widely used in machinery and automation.
Profile Series
30 Series
Workstations, small automation systems

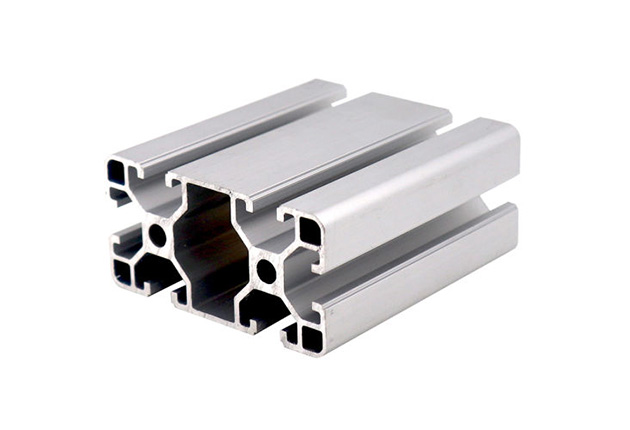

40 Series
Most common for industrial automation frameworks.

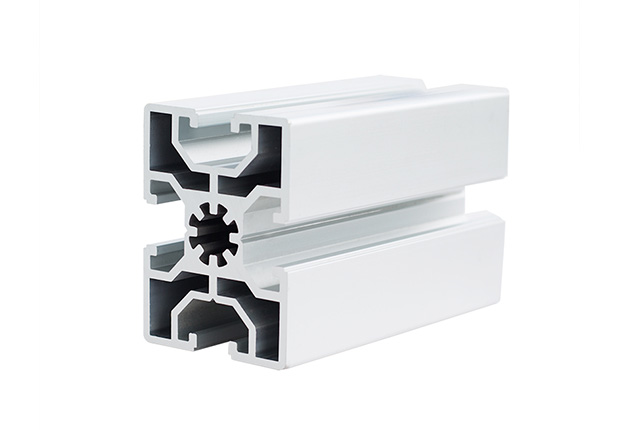

45 Series (European DIN Standard)
Widely used in factory automation; compatible with 8 mm slots.

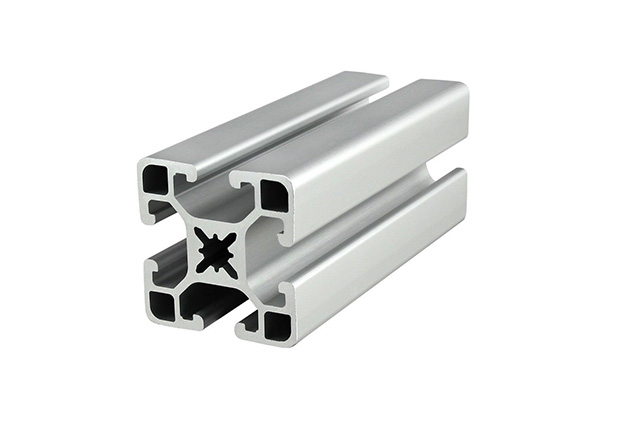

50 / 60 Series
Medium/heavy-duty frames, storage racking, AGV structures.

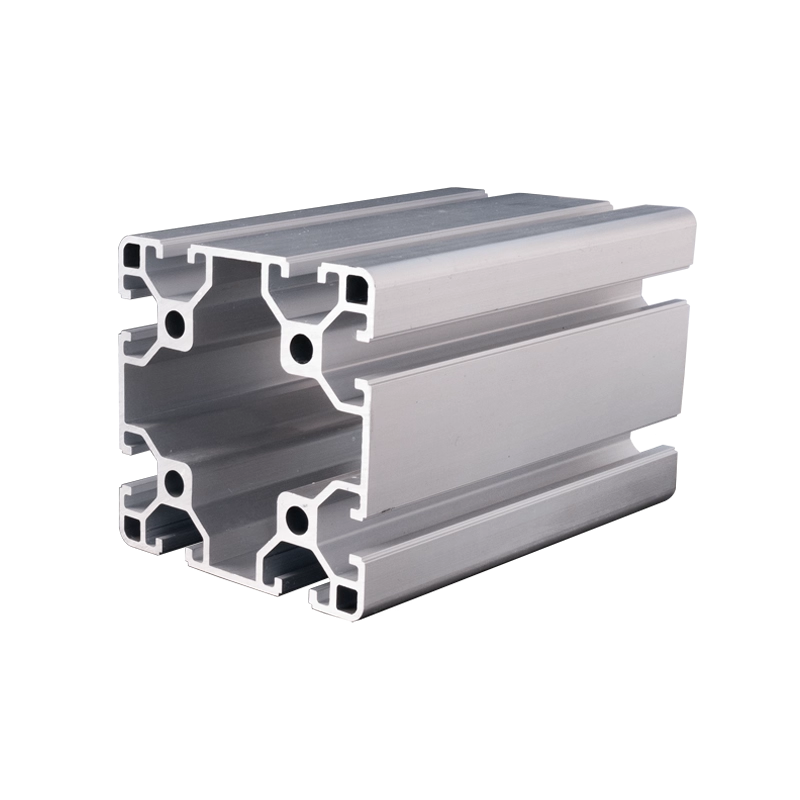

80 Series
Heavy machinery frames, high-load structures.
Surface Treatment
Commonly used and accept your customization.

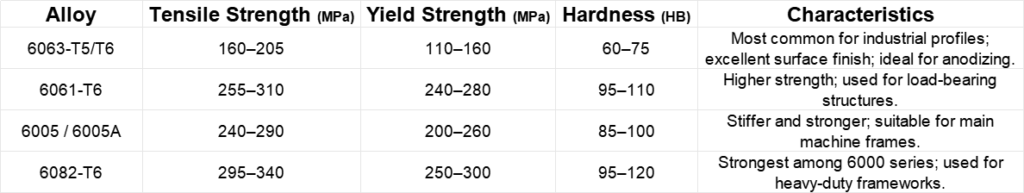

Common Alloys & Mechanical Properties
| Alloy | Tensile Strength (MPa) | Yield Strength (MPa) | Hardness (HB) | Characteristics |
|---|---|---|---|---|
| 6063-T5/T6 | 160-205 | 110-160 | 60-75 | Most common for industrial profiles; excellent surface finish: ideal for anodizing |
| 6061-T6 | 255-310 | 240-280 | 95-110 | Higher strength; used for load-bearing structures. |
| 6005/6005A | 240-290 | 200-260 | 85-100 | Stiffer and stronger, suitable for main machine frames. |
| 6082-T6 | 295-340 | 250-300 | 95-120 | Strongest among 6000 series; used for heavy-duty frameworks. |
Selection Guide
1. Identify the Application Requirements
Before choosing a profile, determine the functional and structural requirements:
Key Questions:
-
What is the load capacity needed? (static load / dynamic load)
-
Is the structure stationary or moving?
-
Will it be used indoors or outdoors?
-
What is the required frame size?
-
Does the design need panels, doors, guards, rollers, or linear guides?
-
Do you require lightweight or high rigidity?
2. Determine the Load Capacity (Light / Medium / Heavy Load)
Light-Duty (0–50 kg per frame section)
Suitable Profiles:
-
2020, 2040 (Slot 6)
-
3030 (Slot 8)
Typical Applications:
-
Lightweight racks
-
Display stands
-
Small automation equipment
-
Sensor brackets, covers
Medium-Duty (50–200 kg per frame section)
Suitable Profiles:
-
3030, 3060
-
4040, 4080
-
45 Series (slot 8–10)
Typical Applications:
-
Workbenches
-
Equipment frames
-
Robot workstation frame
-
Conveyor support structure
Heavy-Duty (200–600+ kg per frame section)
Suitable Profiles:
-
4080 Heavy, 8080, 80160
-
50 Series & 60 Series
-
6082-T6 / 6005A reinforced profiles
Applications:
-
Large machine frames
-
AGV/AMR chassis
-
Storage racking
-
Heavy automation systems
3. Choose the Profile Series (20/30/40/45/50/60/80)
20 Series
Light duty
Compact structure
– Not suitable for heavy load
Used for: small frames, guards, displays
30 Series
General small-to-medium structures
Good cost-performance
Used for: workstations, cabinets, covers
40 Series
Most widely used in factories
Excellent compatibility
Ideal for automation equipment
Used for: machine frames, conveyors, robots
45 Series (European DIN)
High precision
Compatible with Bosch/Item systems
Used for: automotive automation, robot systems
50 / 60 Series
Strong rigidity
Good for heavy load
Used for: heavy supporting frames, logistics racks
80 Series
Maximum strength
Used for: industrial heavy-duty structures
5. Choose Alloy & Temper
If your design needs:
-
Better surface finish → 6063-T5/T6
-
Higher strength → 6061-T6 / 6005A
-
Very high load-bearing → 6082-T6
Recommendation:
For 90% of automation equipment → 6063-T6 / 6061-T6 are sufficient.
6. Select the Surface Treatment
Indoor, standard industrial use
Anodizing 8–12 μm (standard)
Outdoor use/corrosion environment
Thick anodizing 15–25 μm
Or powder coating for UV resistance
High-end equipment appearance
Electrophoretic coating (glossy finish)
Request more information about our aluminum profiles.
Key Features
What You care about, what we produce
High Strength-to-Weight Ratio
Strong yet lightweight, suitable for most industrial frameworks.Modular & Weld-Free Assembly
T-slot/V-slot systems allow flexible, tool-based installation without welding.High Compatibility
Profiles and accessories across multiple series are interchangeable.Corrosion Resistance
Naturally corrosion-resistant; enhanced further with anodizing.Reusable Structure
All components can be disassembled and reconfigured.Easy Processing
Can be cut, drilled, tapped, milled, and machined easily.
profile series
high quality
aluminum profile
aluminum profile series
You can find anything you want here.
The Benefits of Quote from Bilateral
quality assurance
ISO 9001:2015 & CE certified—inspection and material reports for every batch.Price advantage
Factory direct, bulk purchases enjoy discountsLow MOQ
Standard products: small MOQ supported, mixed size orders accepted.
Custom products: MOQ depends on size and tooling requirements.delivery date
Standard products: Orders will be processed 15-30 days after placement Custom products: 45 days after placement，specific times will need to be discussed.
