Solar Flat Roof Mounting System

Suitable for concrete flat roofs, color steel tile flat roofs, etc.

what we offer？

Complete solar flat roof mounting system and solar accessories suitable for this system, including rails, side clamps, middle clamps, solar fasteners, etc.

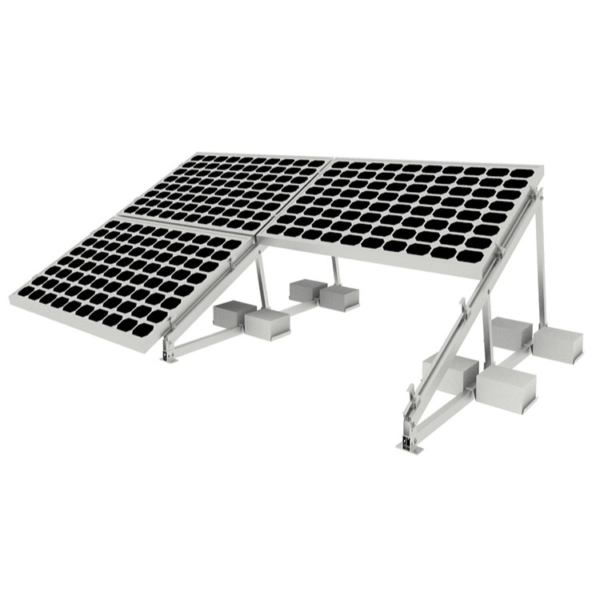

  • Solar Flat Roof Mounting System Ballasted (Weighted) Type

    solar flat roof mounting system

    Solar flat roof mounting system design considerations: load-bearing, wind-proof, drainage, and maintenance.

    Suitable for concrete flat roofs, color steel tile flat roofs, etc. Usually fixed with counterweights (cement piers) or chemical/mechanical anchoring methods, the bracket structure is designed with a certain inclination angle (fixed or adjustable) to optimize power generation.

    Installation method

    • Penetrating (Anchored) Type – Chemical anchor bolts driven into the roof structural layer
    • Ballasted (Weighted) Type – Concrete blocks or steel structure weights for wind uplift resistance
    • Hybrid Type – Ballast combined with partial anchoring for enhanced stability

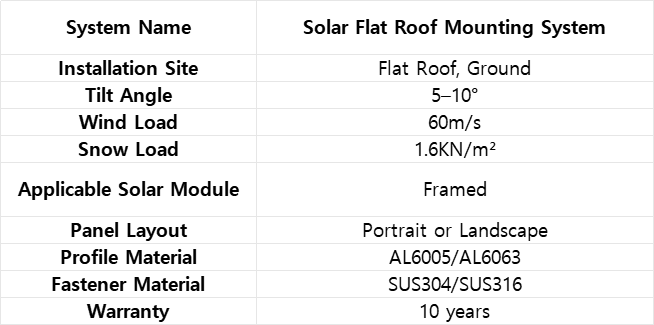

    Technical parameter

    technical parameter of solar flat mounting system
  • mounting flat roof system

    Penetrating (Anchored) type
    flat roof mounting system

    • Suitable Roof Types: roofs with limited load-bearing capacity where pure ballast methods cannot be employed.

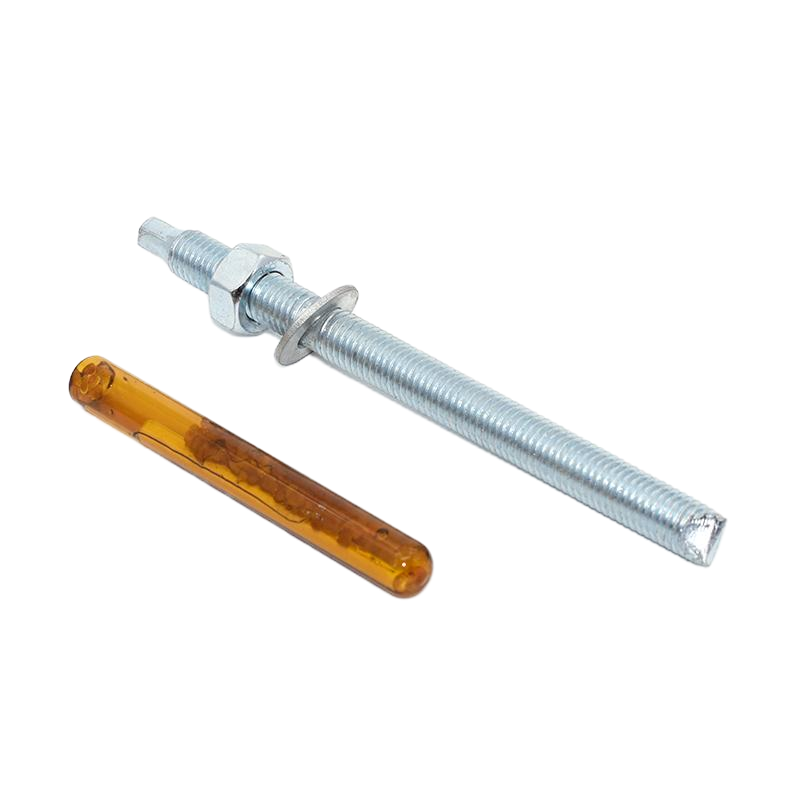

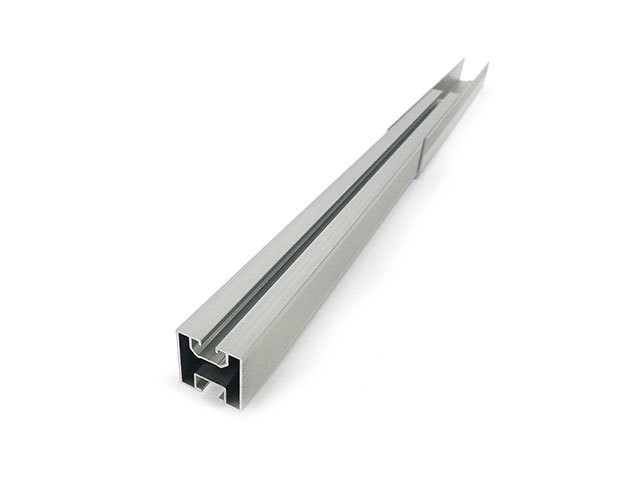

    • Core Components: Chemical Anchor Bolt; Rail Series; Clamps Series.
    • Advantages: Wide applicability; Directly anchored to the building structure; Allows for larger installation angles.
    • Installation Guidelines: Each penetration point must use high-quality waterproof washers and sealant.
    Contact
  • Solar Flat Roof Mounting System Ballasted (Weighted) Type

    Ballasted (Weighted) Type
    flat roof mounting system

    • Suitable Roof Types: roofs with very gentle slopes and sufficiently sturdy structural load-bearing capacity.
    • Core Components: Concrete Blocks/Steel Structures; Rail Series; Clamps Series.
    • Advantages: protects the roof; helps maintain the roof’s original warranty; Faster installation.
    • Installation Guidelines:Fix hooks to purlins or beams, not directly on roof tiles.
    Contact
  • Hybrid Type flat roof mounting system

    Hybrid Type
    flat roof mounting system

    • Suitable Roof Types:Flat roofs with limited load-bearing capacity; Roofs requiring waterproof protection;  Very low-slope or nearly flat roofs
    • Core Components: Chemical Anchor Bolt; Concrete Blocks/Steel Structures; Rail Series; Clamps Series.
    • Advantages:Protects roof by minimizing penetrations; Highly adaptable; Flexible installation.
    • Installation Guidelines: Adjust the combination of ballast and anchors based on actual roof conditions for safety and efficiency
    Contact

How to Choose

If you’re unsure how to choose, check here or contact us.

  • Roof Waterproofing Priority

    Prefer ballasted or hybrid mounting systems.

  • solar mounting system

  • High Wind Load & Limited Roof Load Capacity

    Use penetrating mounting for reinforcement at critical points (hybrid system).

  • Sufficient Roof Load & Moderate-to-Low Wind

    Ballasted system is the most cost-effective and convenient.

  • Large-Scale PV Projects

    Hybrid system can balance safety, energy efficiency, and roof protection.

Contact now

What you can get

As a professional wholesaler,
I have what others have, but not what they don’t.

  • Solar Flat Roof Mounting System Ballasted (Weighted) Type

    R&D and Design Capabilities

    • 30-Engineer R&D Team Designing Mounting System Structures and Components
    • Producing according to your requirements.
    Contact

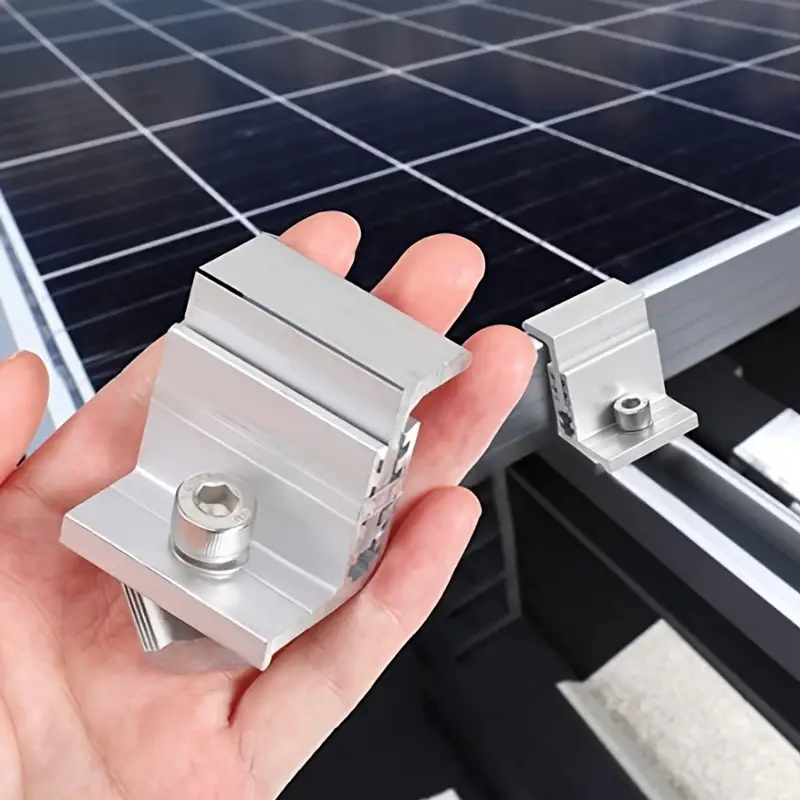

  • side clamp kit

    Worry-free purchasing

    • One-stop factory for complete mounting systems & components.
    • Save your time, energy, and money.
    Contact
  • solar metal roof mounting system

    Super cost-effective

    • Quality at the right price.
    • You get your money’s worth with me, even better
    Contact

engineer cases

With many years focusing on the photovoltaic industry,
we have earned customers’ trust and secured numerous projects through our professionalism.

Help

We offer customized flat roof mounting solutions tailored to various climates and structural needs.

Yes, all our products are ISO and CE certified.

Yes, our products are rigorously tested to withstand harsh weather conditions, ensuring longevity.

Contact us directly with your project requirements, and we’ll guide you through the process.
