The Role of Solar Hanger Bolts in Rooftop Solar Sustainability

Introduction: Small Components, Big Impact

When people think about solar energy, they often picture sleek photovoltaic panels glistening on rooftops. But beneath every stable panel lies an unsung hero — the solar mounting bolt. Though small, these components are vital for the long-term sustainability and efficiency of rooftop solar systems. Without reliable bolts, even the most advanced solar modules can fail under harsh conditions.

A single compromised fastener can lead to energy loss, roof damage, or costly maintenance — undermining the entire system’s sustainability.

1. Why Mounting Bolts Matter in Sustainable Rooftop Systems

Sustainability in solar isn’t only about clean energy production — it’s also about system durability, material longevity, and reduced lifecycle maintenance.
Solar mounting bolts directly influence all three.

Key Aspect	Impact on Sustainability	Recommended Material/Design
Structural Integrity	Prevents module movement and detachment	Double-threaded hanger bolts (M10/M12)
Corrosion Resistance	Extends lifespan in humid or coastal environments	Stainless steel 304/316
Ease of Installation	Reduces labor time and waste	Pre-assembled bolts with EPDM sealing washer
Waterproof Performance	Protects roof structure, minimizes repair	With a sealing gasket and a washer
Recyclability	Enhances end-of-life sustainability	100% recyclable stainless steel

2. The Connection Between Bolts and Long-Term Efficiency

Even the greenest energy system can lose efficiency due to structural failures. Properly engineered bolts, such as solar hanger bolts, help maintain module alignment, ensure stable load distribution, and protect the roof membrane.

Example:
In a 25-year solar system, the total maintenance cost can rise by 20–30% if low-quality fasteners are used. By contrast, high-quality stainless steel bolts may initially cost slightly more, but they dramatically reduce total lifecycle costs.

3. Design Features That Enhance Sustainability

Modern rooftop solar systems depend on bolts designed with sustainability in mind:

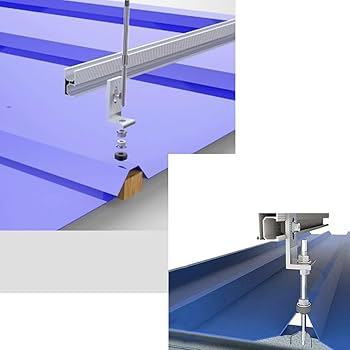

• Double-threaded Design: Enables secure fixing between the roof structure and the mounting rail.
• EPDM Sealing Washer: Ensures waterproof performance and prevents roof leakage.
• Tapered or Flanged Head: Improves torque transfer and stability under wind load.
• 316 Stainless Steel: Delivers superior resistance against salt spray, acid rain, and UV exposure.

Pro Tip: For metal rooftops, always pair hanger bolts with matching stainless nuts and spring washers to prevent galvanic corrosion.

4. Case Study: Sustainable Rooftop Installation with Quality Fasteners

Project: 250 kW commercial rooftop system in coastal China
Challenge: High humidity and salt-laden air cause early corrosion in conventional fasteners.
Solution: Upgraded to 316 stainless steel solar hanger bolts with EPDM sealing washers.
Result:

• System integrity is maintained after 5 years
• Zero corrosion detected
• Reduced maintenance cost by 22%
• ROI achieved 6 months earlier

5. How to Choose the Right Solar Mounting Bol

Before selecting, evaluate:

1. Roof Type – Tile, metal, or concrete roofs require different hanger bolt lengths and threads.
2. Load Capacity – Match the mechanical requirements to wind and snow load.
3. Corrosion Environment – Choose 304 for inland, 316 for coastal or industrial regions.
4. Certifications – Ensure compliance with ISO, CE, or TUV standards.

Roof Type	Recommended Bolt Type	Example Size
Tile Roof	Double-thread hanger bolt + L-foot	M10x200mm
Metal Roof	Drilling the tail hanger bolt	M10x150mm
Concrete Roof	Expansion anchor bolt	M12x180mm

FAQ – Common Questions About Solar Mounting Bolts

Q1: How often should solar bolts be inspected?
At least once every 2–3 years, especially in coastal regions.

Q2: Can I mix stainless steel bolts with aluminum rails?
Yes, but always use insulating washers to prevent galvanic corrosion.

Q3: Do solar bolts affect roof waterproofing?
Absolutely — choose bolts with EPDM washers to ensure a tight, long-lasting seal.

Partner for Sustainable Mounting Solutions

At Suzhou Bilateral Import and Export Co., Ltd., we specialize in high-performance solar mounting systems and fasteners that enhance both system durability and environmental sustainability.

Our key products include:

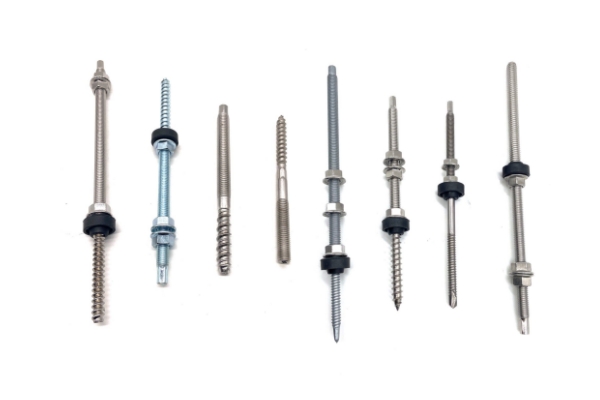

• Solar hanger bolts (M8–M12, 304/316 SS)
• Solar roof hooks
• Clamp series
• Pitched roof mounting system
• Flat roof mounting system

Visit our website to explore our solar mounting solutions designed for long-term performance and environmental resilience.

🏁 Conclusion

The sustainability of rooftop solar systems relies on much more than energy generation — it depends on the integrity of every component. Solar mounting bolts may be small, but they form the literal and symbolic foundation of a durable, safe, and eco-friendly future.
Investing in high-quality bolts isn’t just an engineering choice — it’s a commitment to sustainable energy for decades to come.
