Concrete is an incredibly strong construction material. When paired with the right fasteners, its reliability increases significantly. In recent years, the need for strong, corrosion-resistant bolts for concrete has increased quickly. This is especially true for outdoor and industrial uses.
Choosing the right concrete anchor bolt is important. This applies whether you are anchoring heavy equipment, installing solar mounting systems, or reinforcing foundations. Here are the Top 10 Recommended Concrete Bolts for 2025. These are ranked based on strength, durability, and versatility. The order does not matter.
Top 10 Concrete Bolts

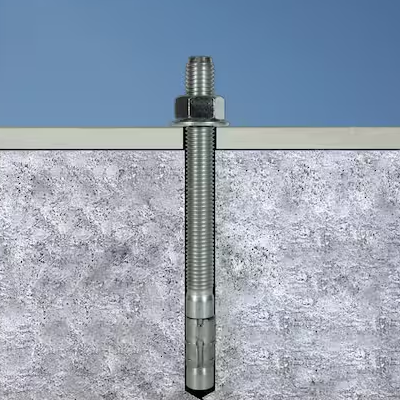

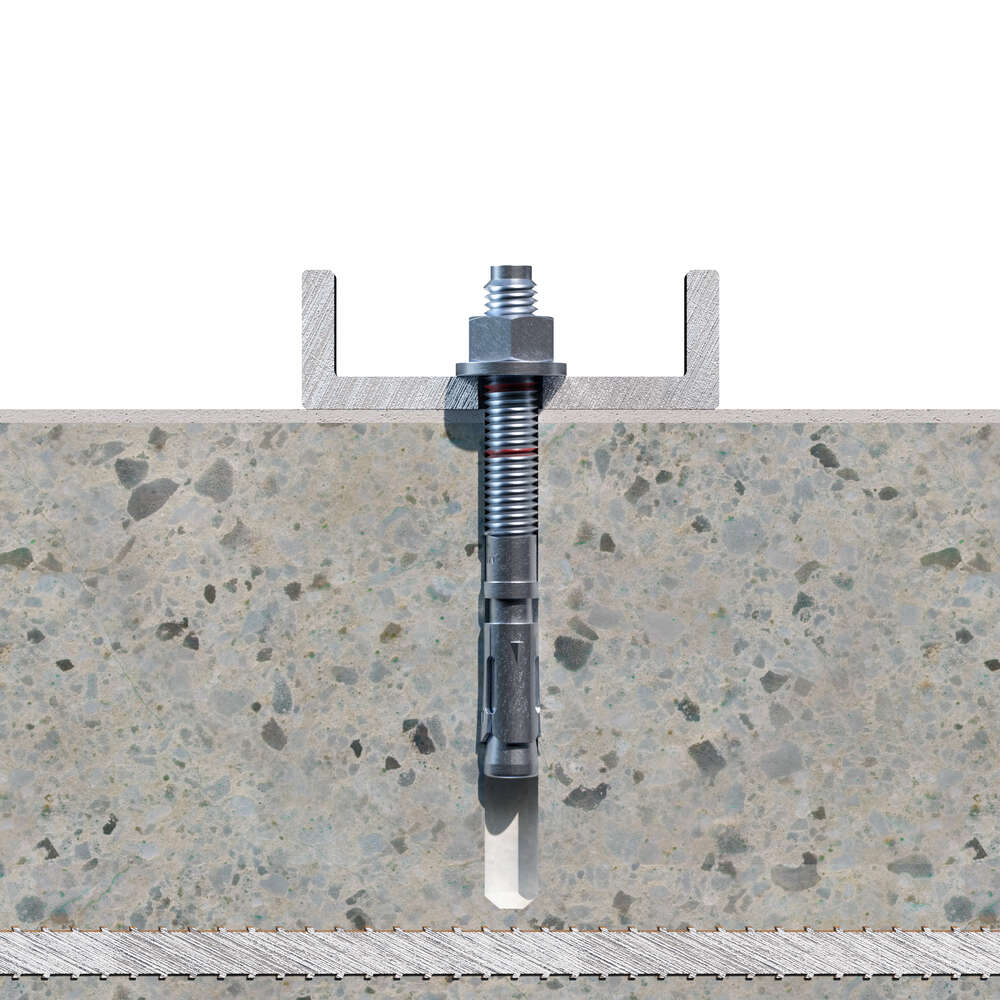

1. Wedge Anchor Bolt
Wedge anchors grip the concrete as you tighten them. They expand inside the hole to stay secure.
⚠ Tip: Don’t use in cracked concrete or high-vibration zones unless approved by an engineer.
- Best for: Heavy loads, solid concrete
- Strength: High pull-out and shear resistance
- Material: Stainless steel (A4-316) or Grade 8.8 carbon steel
- Load: Up to 10,000N
- ✅ Great for foundations, steel base plates

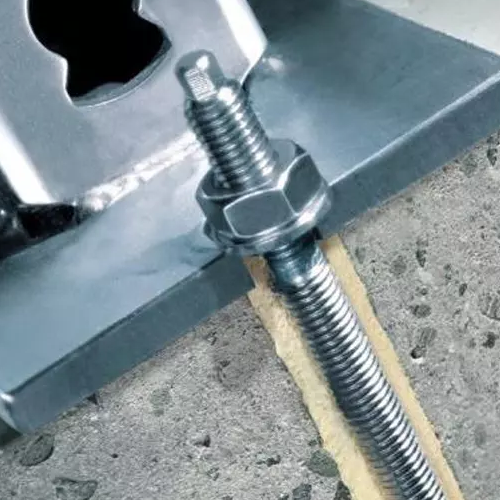

2. Epoxy Anchor Bolt (Chemical Anchor)
Epoxy anchors use special glue to hold threaded rods in drilled holes. They offer strong bonds and resist shock and movement.
⚠ Tip: Clean the hole before use. In cold weather, warm the epoxy tube first. Always use the right brand and mix as instructed.
- Best for: Cracked concrete, seismic areas
- Strength: Strong chemical grip inside the hole
- Material: Steel rod + epoxy resin
- Load: Up to 15,000N
- ✅ Best for retrofits and heavy-duty jobs

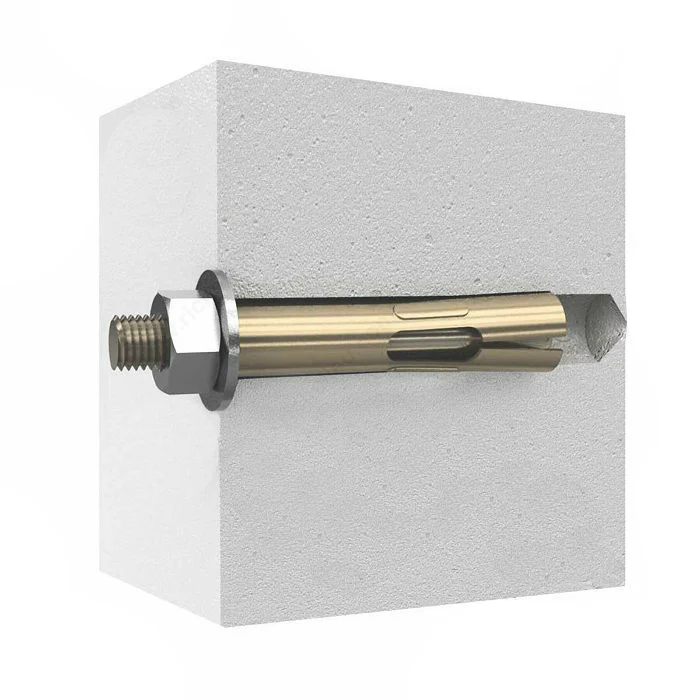

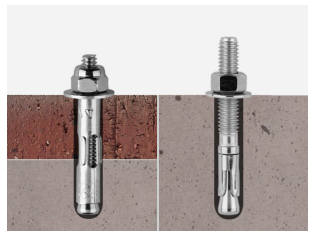

3. Sleeve Anchor Bolt
These bolts have a metal sleeve that expands when tightened. They work well for light to medium loads.
⚠ Tip: Don’t use on cracked or weak concrete. Drill the correct depth and avoid areas near edges.
- Best for: Hollow block, interior walls
- Strength: Expands in all directions
- Material: Zinc-coated or stainless steel
- Load: Around 5,000N
- ✅ Easy to install, great for signs or fixtures

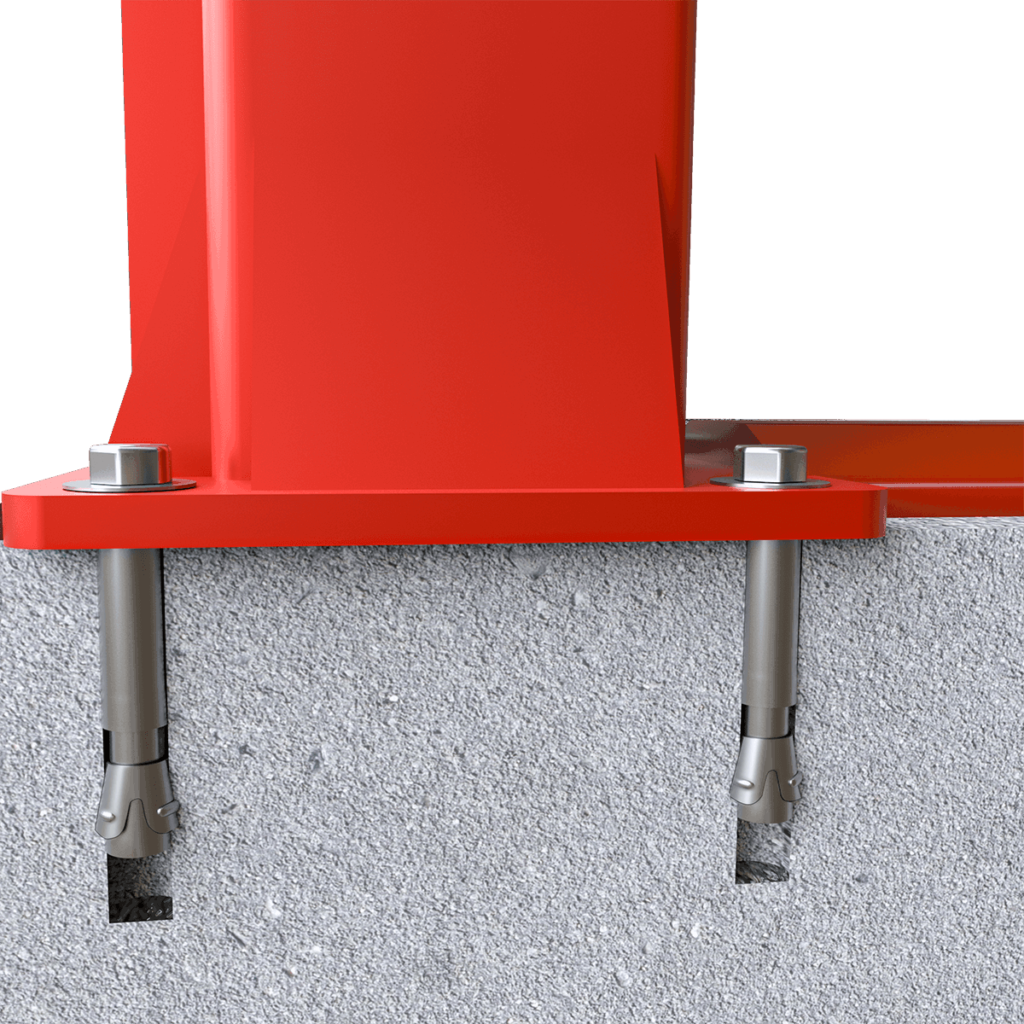

4. Through Bolt (Expansion Bolt)
Also known as wall anchors, these go through the object and into the concrete. Tightening the nut makes the bolt expand.
⚠ Tip: Make sure hole size matches the bolt. Over-tightening can damage the base.
- Best for: Base plates, heavy brackets
- Strength: Expands on tightening for strong grip
- Material: Zinc-plated or stainless steel
- Load: Up to 8,000N
- ✅ Ideal for solar, electrical, or HVAC mounts
5. Drop-In Anchor Bolt
These anchors expand from inside when hit with a setting tool. They stay flush with the concrete surface.
⚠ Tip: Always use the correct tool. Make sure the internal cone is fully set.
- Best for: Hanging rods, ceilings, light frames
- Strength: Flush mount, strong grip inside
- Material: Stainless steel
- Load: Medium to high
- ✅ Great for lighting, ducts, and cable trays
6. L-Bolt (L-Shaped Foundation Anchor)
These are cast into concrete before it sets. The L shape keeps the bolt from being pulled out.
⚠ Tip: Must be placed correctly before pouring concrete. Once set, it can’t be moved.
- Best for: Concrete bases, steel columns
- Strength: Bent end locks into concrete
- Material: Galvanized carbon steel
- Load: High
- ✅ Common in structural foundations
7. Sleeve Bolt with Nut
A bolt with a metal sleeve and nut, good for light-duty fixings.
⚠ Tip: Not for areas with vibration or moving parts. Use a washer to prevent loosening.
- Best for: Railings, signs, electrical boxes
- Strength: Large surface contact
- Material: Stainless steel or zinc alloy
- Load: Medium
- ✅ Quick install, stable grip

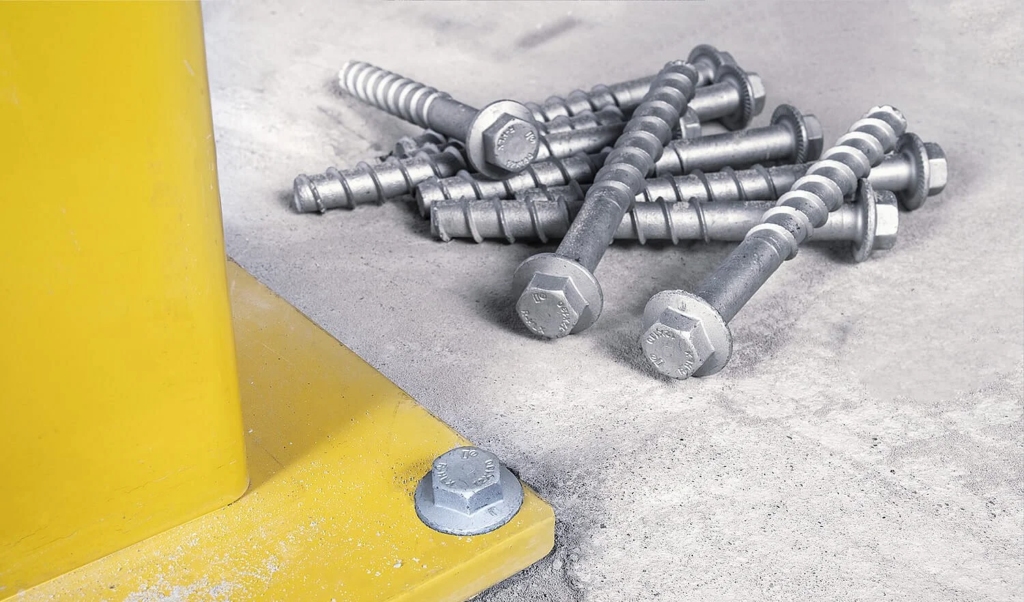

8. Concrete Screw Bolt
These bolts cut threads into concrete as you drive them in. No anchor sleeve is needed.
⚠ Tip: Drill the hole first. Do not reuse the same hole for another bolt.
- Best for: Fast installs, small loads
- Strength: Direct grip into concrete
- Material: Hardened steel
- Load: Around 2,000N
- ✅ Great for brackets, rails, and wall mounts

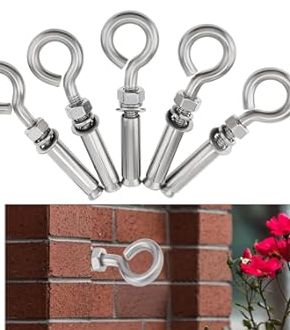

9. Hook Anchor Bolt
These have a hook on the end to hold cables or hang items. They expand like wedge anchors.
⚠ Tip: Use only for vertical loads. Not designed for side pressure.
- Best for: Hanging pipes, cables, or decor
- Strength: Good for pulling loads
- Material: Zinc-coated or stainless steel
- Load: Low to medium
- ✅ Popular in plumbing and electrical installs
10. U-Bolt with Base Plate
U-shaped bolts hold round pipes or rails. The base keeps them fixed in place.
⚠ Tip: Match the pipe size and bolt spacing before install. A loose base can cause shifts.
- Best for: Pipes, solar rails, HVAC lines
- Strength: Grips around and anchors below
- Material: Stainless steel
- Load: Varies by size
- ✅ Trusted in solar and piping systems
Strength Comparison Table
| Bolt Type | Load Rating | Recommended Use | Corrosion Resistance |
|---|---|---|---|
| Wedge Anchor | ★★★★★ | Heavy loads, foundations | High (Stainless Steel) |
| Epoxy Anchor | ★★★★★ | Seismic zones, retrofitting | Very High |
| Sleeve Anchor | ★★★★☆ | General installations | Moderate |
| Through Bolt | ★★★★☆ | Steel plates, base fixing | Medium to High |
| Drop-In Anchor | ★★★★☆ | Ceiling, bracket systems | High |
| L-Bolt | ★★★★★ | Cast-in concrete | Medium |
| Sleeve Bolt + Nut | ★★★☆☆ | Light-duty mounting | Moderate |
| Concrete Screw | ★★★☆☆ | Fast setup | Low to Medium |
| Hook Anchor | ★★☆☆☆ | Hanging pipes/cables | Medium |
| U-Bolt + Base | ★★☆☆☆ | Pipes, PV rails | High |
Important Installation Notes
| Bolt Type | Key Caution | Highlight |
|---|---|---|
| Wedge Anchor | Hole depth ≥ bolt length + 10mm; avoid re-tightening | Do not reuse or overtighten |
| Epoxy Anchor | Use OEM resin; clean hole completely | Dust or moisture weakens adhesion |
| Sleeve Anchor | Only for solid base; not for cracked concrete | Not suitable for structural connections |
| Through Bolt | Hole diameter must match bolt size | Over-torquing can strip threads |
| Drop-In Anchor | Requires proper setting tool | Incomplete expansion causes loosening |
| L-Bolt | Must be accurately positioned before pouring concrete | Misplacement is irreversible |
| Sleeve Bolt + Nut | Not for dynamic loads | Use lock washers if vibration is expected |
| Concrete Screw | Pre-drill holes to exact depth | Reuse of holes not allowed |
| Hook Anchor | Primarily for vertical loads | Not designed for shear loads |
| U-Bolt + Base | Match base to pipe diameter | Loose bases cause misalignment |
Final Thoughts: Which Bolt for Concrete Is Right for You?
Choose your bolt for concrete based on your application, load demands,and environment:
- Need strong grip? → Use wedge or epoxy anchors
- Want easy install? → Try sleeve anchors or concrete screws
- In wet or outdoor spots? → Go with stainless steel bolts
Still unsure? Reach out to us for help choosing the right fastener for your job.Contact us today for more information.
