Reinforced Shoulder Design
The integrated shoulder provides additional support between the eye and threaded shank, improving stability and reducing bending stress during lifting operations.
ASME/ANSI B 18.15.2 Shoulder Pattern Eyebolt
- Standard: ASME/ANSI B 18.15.2
- Material: Stainless Steel
- Thread Size: 1/4 – 2
- Surface Treatment: Plain, Zinc Plated
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 – 45 Days
Product Overview
Product Application
ASME/ANSI B18.15.2 Shoulder Pattern Eyebolts are heavy-duty threaded lifting fasteners designed with an integrated shoulder below the eye to provide improved stability and load distribution. Compared with standard eyebolts, shoulder pattern eyebolts offer better resistance to bending and are suitable for angular lifting applications when properly installed.
Manufactured according to ASME/ANSI B18.15.2 specifications, our shoulder eyebolts are available in stainless steel, carbon steel, and alloy steel with various surface treatments to meet different industrial requirements.

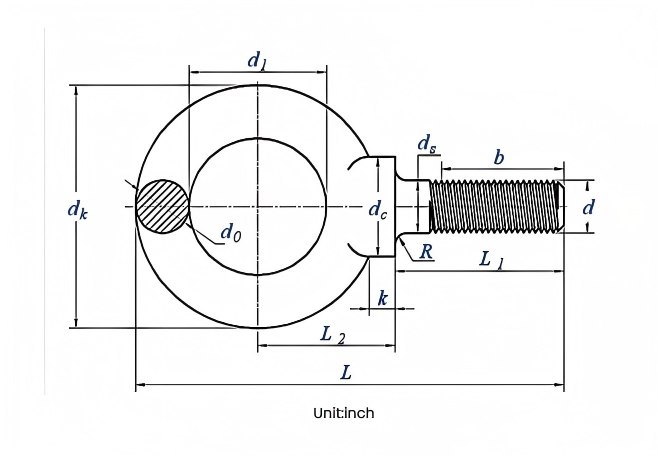

Draw

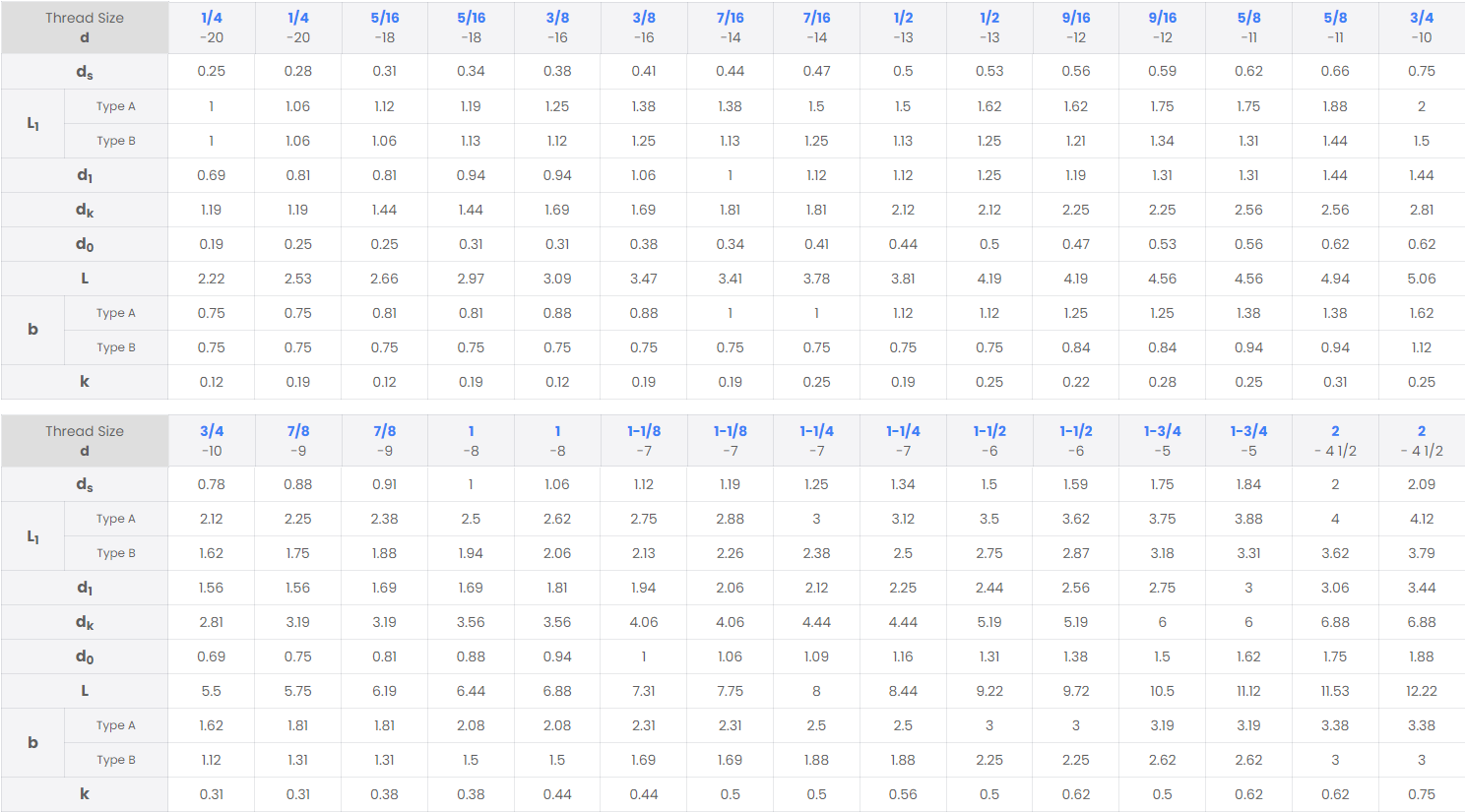

Specification
Difference between Shoulder Eyebolt and Regular Eyebolt
Structural Advantage of Shoulder Design
The shoulder acts as a support surface between the eye and the mounting surface. It helps:
- Improve alignment during lifting
- Reduce stress concentration at the eye-to-shank transition
- Increase resistance against bending forces
- Provide better performance under angled loading conditions
Application Difference
Shoulder Eyebolt
- Heavy machinery lifting
- Industrial equipment handling
- Marine and offshore applications
- Rigging systems requiring higher stability
Regular Eyebolt
- Vertical lifting applications
- Light-duty rigging
- General-purpose fastening
- Applications with minimal side loading
Product Advantages
High Load Performance
Designed according to ASME/ANSI B18.15.2, these eyebolts provide reliable strength for demanding lifting and rigging applications.
Corrosion Resistant Options
Available in SUS304 and SUS316 stainless steel, offering excellent corrosion resistance for marine, outdoor, and harsh environments.
Common Questions
What is an ASME/ANSI B18.15.2 Shoulder Pattern Eyebolt?
ASME/ANSI B18.15.2 Shoulder Pattern Eyebolt is a lifting eyebolt with an integrated shoulder under the eye, designed to improve stability and load distribution during lifting operations.
What is the difference between a shoulder eyebolt and a regular eyebolt?
The shoulder design provides additional support and improves resistance to bending, especially when lifting loads at angles. Regular eyebolts are mainly suitable for vertical loading.
Can shoulder eyebolts be used for angular lifting?
Yes. Shoulder pattern eyebolts are designed for certain angular loading applications when installed correctly and used within the recommended load limits.
Can you manufacture custom shoulder eyebolts?
Yes. Customized materials, finishes, packaging, and OEM specifications can be provided according to customer requirements.
