One-Side Installation
The countersunk head creates a smooth, level surface that improves appearance while minimizing interference and snag hazards.
ASME/ANSI B 18.30.1M-1
Metric Open-End Blind Rivets with Break Mandrels
-
Standard: ASME/ANSI B18.30.1M-1
- Material: Aluminum, Stainless Steel,
- Diameter: 3–6.4 mm (Custom Available)
- Surface Treatment: Zinc Plated, Natural, Polished, Passivated
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 Days
Product Overview
Product Application
ASME/ANSI B18.30.1M is the American National Standard for metric open-end pop rivets. The round head is the most common head shape. Compared to countersunk heads, the head of a round-head rivet lies flush against the surface of the workpiece, providing a large bearing area and excellent shear and tensile strength. It is suitable for structural components that do not have extreme requirements for surface flatness.
ASME B18.30.1M Metric Open-End Blind Rivets with Break Mandrels are standard round head blind rivets designed for fast and reliable one-sided fastening applications. Manufactured according to ASME dimensional and performance requirements, these rivets provide excellent shear strength, vibration resistance, and installation efficiency for sheet metal, automotive, electrical, and industrial assemblies.

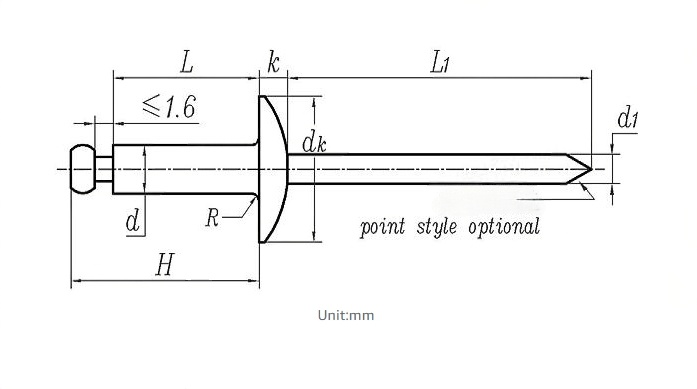

Draw

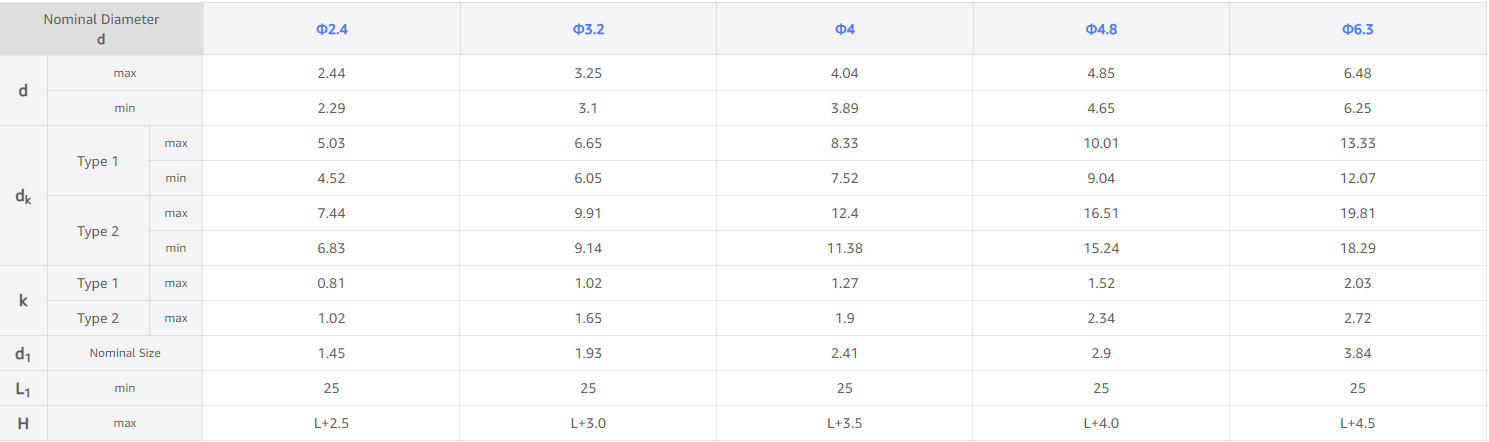

Specification
Product Advantages
Reliable Mechanical Locking
The break mandrel expands the rivet body to create a secure joint with excellent vibration resistance.
Wide Application Compatibility
Available in multiple materials and sizes for sheet metal, automotive, electrical, and industrial applications.
Common Questions
What is ASME B18.30.1M-1-2000 blind rivet?
It is a metric open-end dome head blind rivet with a break mandrel.
Can ASME B18.30.1M-1-2000 rivets be installed from one side?
Yes, they are designed for one-sided blind fastening.
What materials are available for these blind rivets?
Common materials include aluminum, steel, and stainless steel.
Where are ASME B18.30.1M-1-2000 rivets used?
They are used in sheet metal, automotive, electrical, and industrial assemblies.
