Anti-Rotation Square Neck Design
The square neck beneath the round head grips the mounting hole and prevents the bolt from turning during tightening, allowing installation from one side without holding the bolt head.
DIN 603 Mshroom Head Square Neck Bolts
- Standard: DIN 603
- Material: SUS304, SUS316, SUS410, Carbon Steel
- Thread Size: M5-M20
- Surface Treatment: Plain, Zinc Plated, HDG, Dacromet, Ruspert
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 – 45 Days
Product Overview
Product Application
DIN 603 is an extremely classic and highly recognisable fastener standard in the global industrial and construction sectors, representing carriage bolts (Mushroom Head Square Neck Bolts). In the Chinese industry, it is commonly referred to as a ‘semi-round head square neck bolt’ or, for short, a ‘carriage bolt’.
Its key feature is a smooth, mushroom-shaped semi-circular head, with a square neck integrated directly beneath it; this section fits into the mounting hole to prevent rotation during tightening.
DIN 603 is widely used for joining wood to wood, wood to metal, and in general mechanical fastening applications.

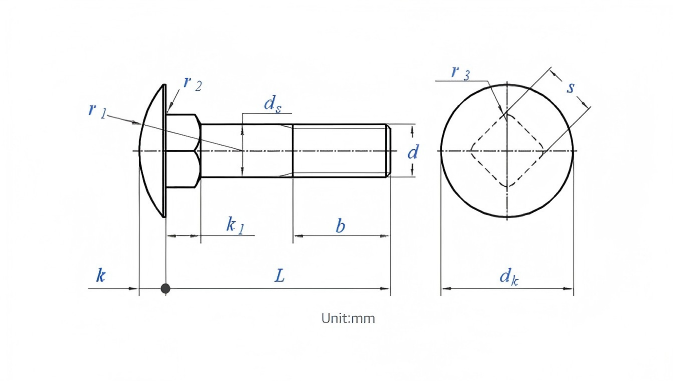

Draw

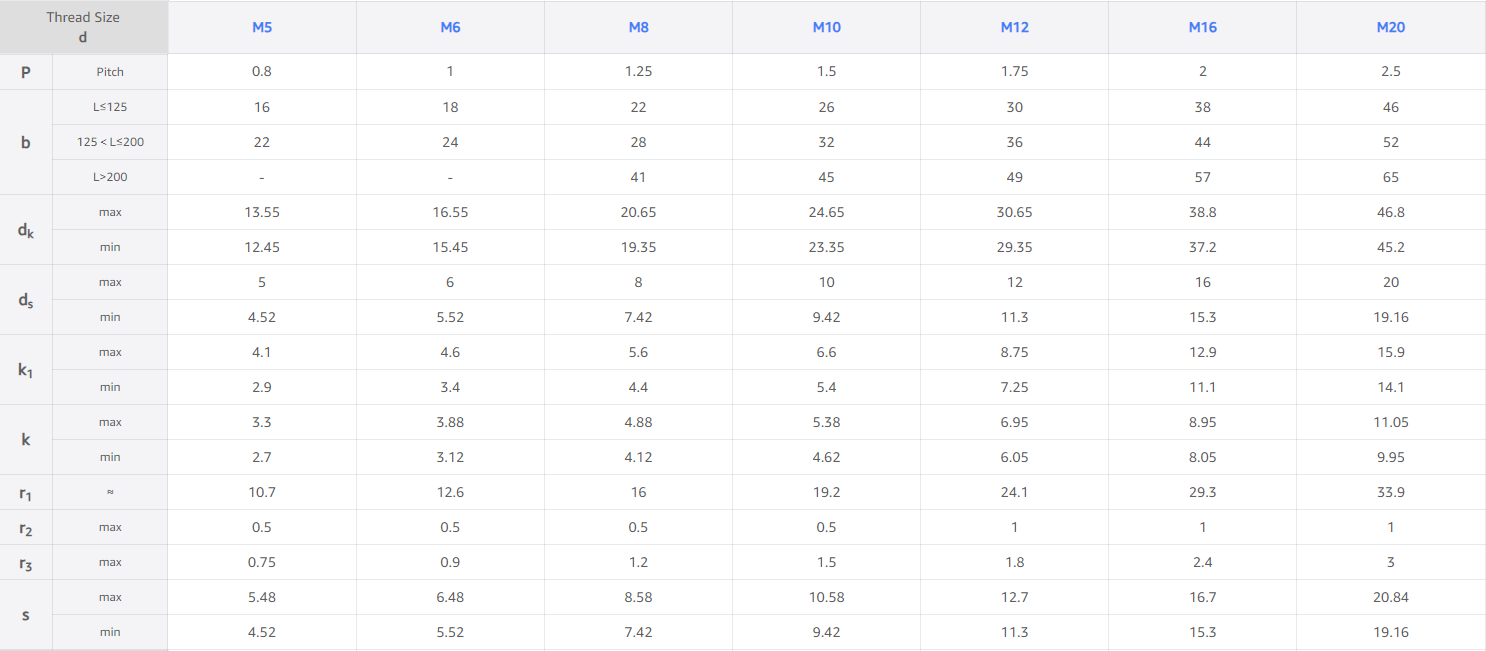

Specification
DIN 603 is a partially threaded bolt (with a smooth shank). Its nominal length is measured from the lower edge of the square neck (i.e., the surface of the workpiece) to the end of the bolt, excluding the height of the head’s crown.
What Makes DIN 603 Unique?
1. Drive-Free Head Design
No Drive Recess, Cleaner Appearance
Unlike hex bolts or socket screws, the head of a DIN 603 carriage bolt has no hex, slot, Phillips, or internal drive. Its smooth dome-shaped head contains no tool engagement feature.
Instead of transmitting torque through the head, the bolt relies on the square neck beneath the head. Once inserted into a matching square or tightly fitted round hole, the neck locks into the material and prevents the bolt from rotating, allowing the nut to be tightened entirely from the opposite side.
Benefits
- Smooth, snag-free surface
- One-sided tightening
- Reduced installation complexity
- Better appearance after assembly
2. Built-in Tamper Resistance
Natural Anti-Theft Protection
Because the exposed head is completely smooth, there is no gripping point for pliers, screwdrivers, or wrenches once the nut has been tightened.
Any attempt to remove the bolt from the exposed side is extremely difficult, making DIN 603 a naturally tamper-resistant fastener without requiring special security drives.
This makes it especially suitable for public facilities, outdoor structures, fences, playground equipment, wooden constructions, and other applications where unauthorized disassembly must be discouraged.
Benefits
- No accessible drive from the exposed side
- Difficult to remove after installation
- Improved vandal and theft resistance
- No special security fastener required
Product Advantages
Smooth Round Head Protection
The low-profile dome head provides a clean appearance while reducing the risk of scratching or catching on external surfaces.
Reliable Structural Connection
Manufactured according to DIN 603 dimensional requirements, ensuring consistent fit, interchangeability, and stable fastening performance.
Common Questions
Can DIN 603 be fully threaded?
Yes, fully threaded and partially threaded versions are available depending on requirements.
What is DIN 603 bolt used for?
DIN 603 is mainly used for wood, metal, and general construction fastening applications.
What is the difference between DIN 603 and normal bolts?
DIN 603 uses a round head with a square neck for anti-rotation, while standard hex bolts require a wrench on the bolt head.
Can DIN 603 screws be customized?
Yes. Custom sizes, materials, coatings, and packaging are available.
