Reliable Mechanical Performance
DIN 933 bolts are manufactured with controlled dimensions and mechanical properties, ensuring stable performance in demanding industrial applications.
DIN 933 Hexagon Head Screws with Thread up to Head
- Standard: DIN 933
- Material: SUS304, SUS316, SUS410, Carbon Steel
- Thread Type: Metric Machine Thread
- Thread Size: M1.6-M39
- Surface Treatment: Zinc Plated, Passivated, Plain, Custom Coating
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 – 45 Days
Product Overview
Product Application
DIN 933 specifies hexagon head fully threaded bolts (Hexagon Head Screws with Thread up to Head) and is the most widely used and common bolt standard in the industrial sector. It is a sister standard to DIN 931 (partially threaded bolts).
The thread on a DIN 933 bolt extends all the way to the base of the head. This means that regardless of the bolt’s length, the entire shank is fully threaded, making it ideal for blind hole installations or applications requiring adjustment of the clamping distance.

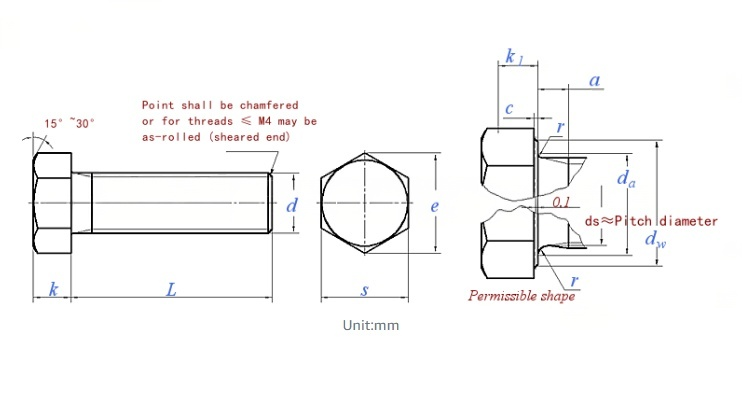

Draw

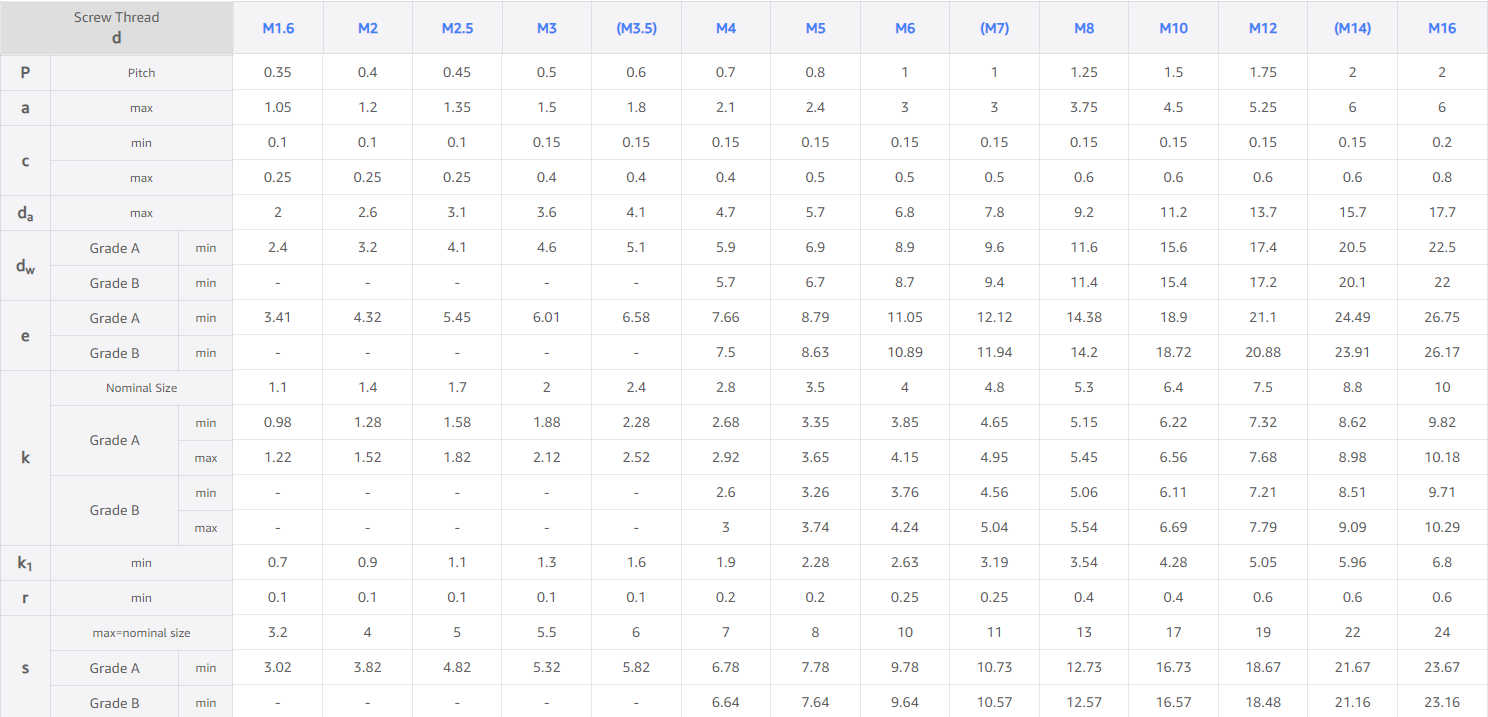

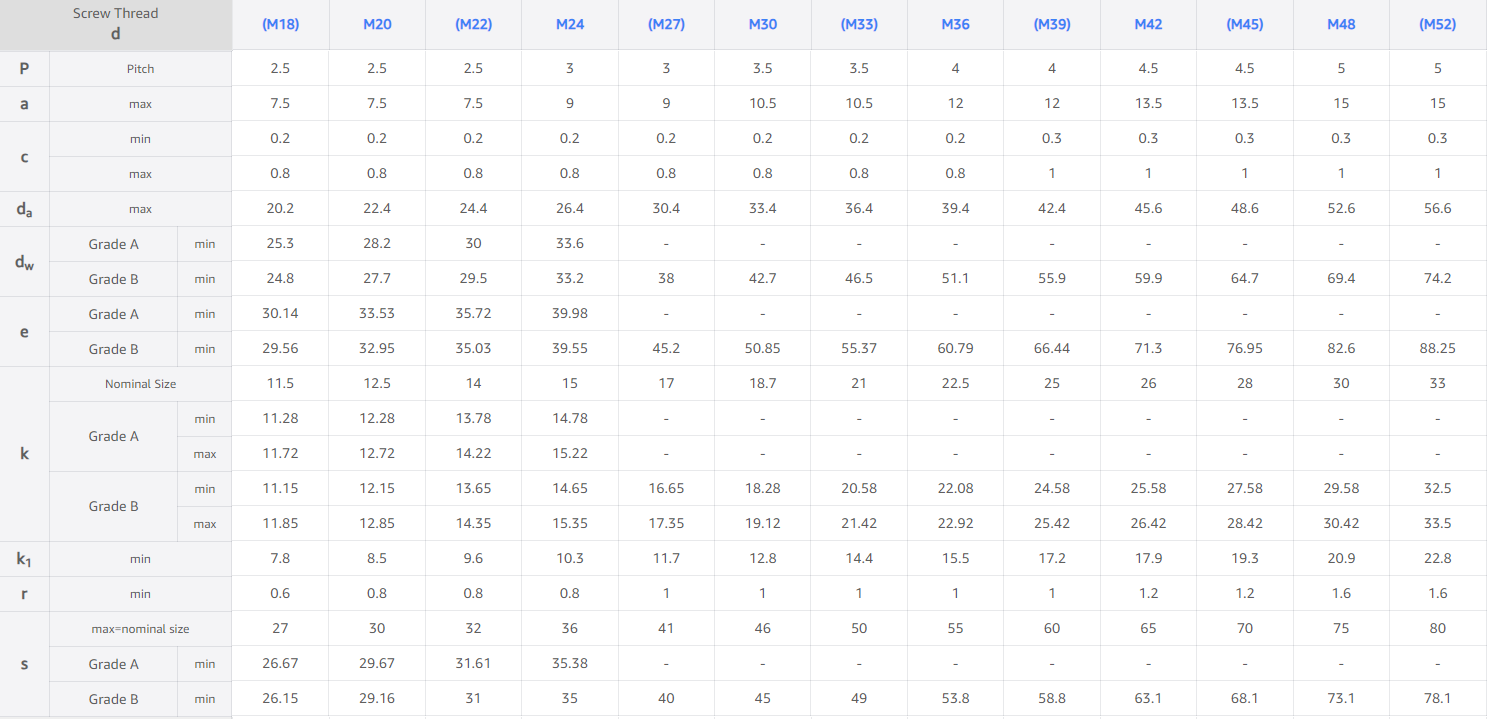

Specification
Key Design Features
- Full-Length Thread Design: Provides maximum thread engagement and stable clamping performance, making it suitable for applications requiring precise positioning and strong fastening.
- High Torque Hex Head: The standard hexagonal head enables efficient torque transmission and easy installation using common tools.
- Wide Material & Surface Options: Available in stainless steel and high-strength steel grades to meet corrosion resistance, strength, and durability requirements.
DIN 931 vs DIN 933
Product Advantages
Full-Length Thread Design
Provides maximum thread engagement and stable clamping performance, making it suitable for applications requiring precise positioning and strong fastening.
Excellent Compatibility
Standard DIN dimensions provide high interchangeability with matching metric nuts and washers, simplifying assembly and maintenance.
Common Questions
What is a DIN 933 bolt?
DIN 933 is a hexagon head bolt with a fully threaded shank manufactured according to German DIN standards.
What is the difference between DIN 931 and DIN 933?
DIN 931 has a partial thread, while DIN 933 is fully threaded.
What materials are available for DIN 933 bolts?
Common materials include carbon steel, alloy steel, stainless steel A2, and stainless steel A4.
Can DIN 933 bolts be customized?
Yes. Size, material, coating, packaging, and special requirements can be customized.
