Automatic Angular Compensation
The spherical contact design allows the washer to adjust automatically when fastening surfaces are not parallel, reducing uneven stress concentration.
DIN 6319 Spherical washer
- Standard: DIN 6319 (Type C)
- Material: Stainless Steel
- Size: M6-M48
- Surface Treatment: Plain, Zinc Plated
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 – 45 Days
Product Overview
Product Application
DIN 6319 spherical washers, also known as conical seat washers or dished washers, are specially designed to compensate for angular misalignment between bolts and bearing surfaces. By using a spherical contact structure, the washer allows the bolt connection to maintain uniform load distribution even when the clamping surfaces are not perfectly parallel.
Manufactured according to DIN 6319, these washers are widely used in machinery, fixtures, molds, heavy equipment, and industrial assemblies where accurate positioning and reliable clamping force are required.

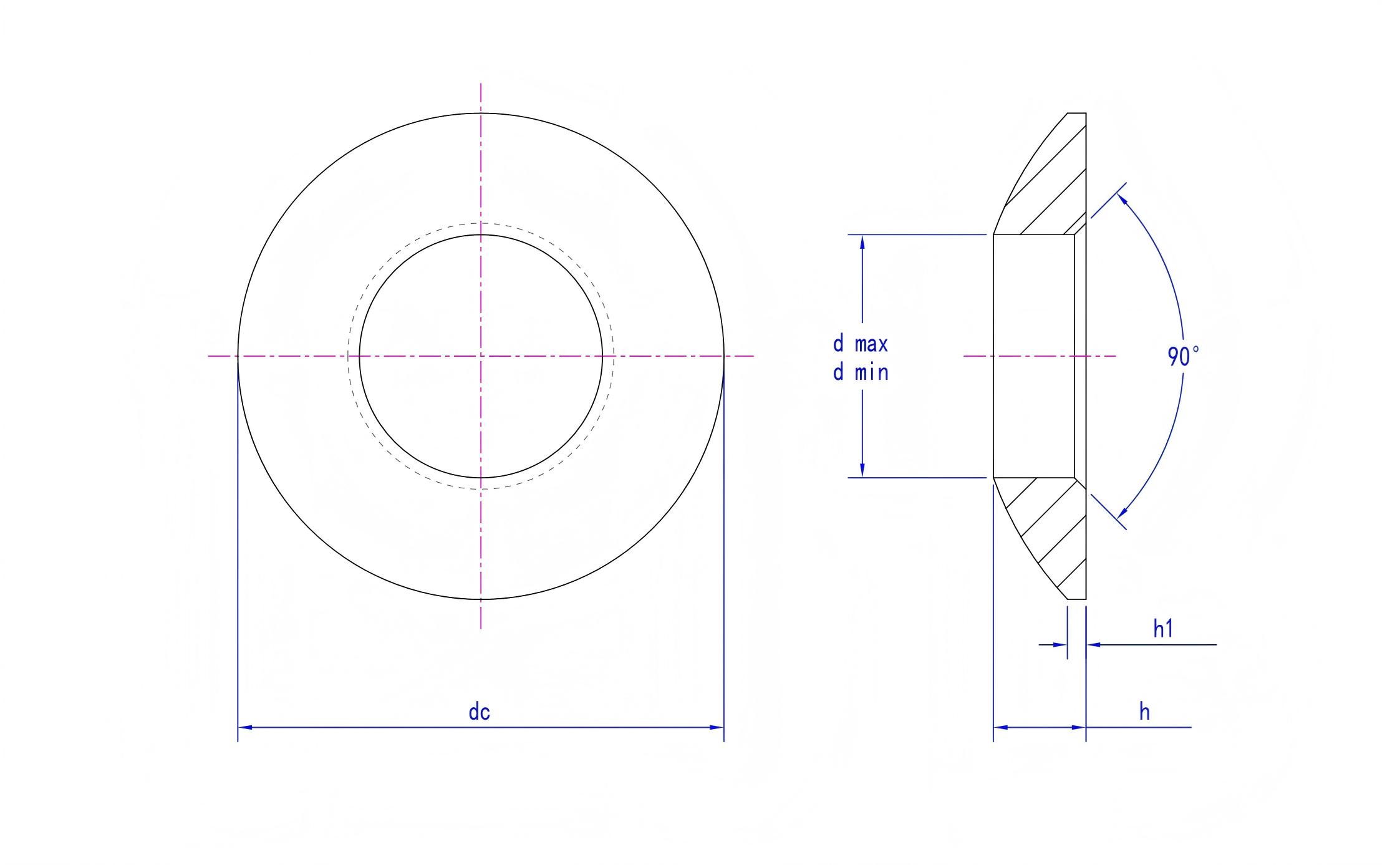

Draw

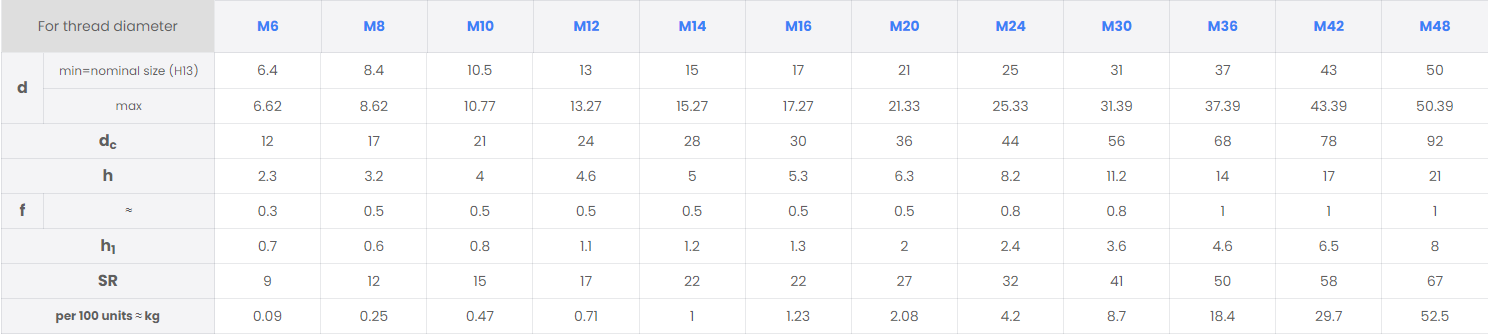

Specification
DIN 6319 vs DIN 125 Flat Washer
DIN 6319 Spherical Washer
- Designed for uneven or angled surfaces
- Provides self-adjustment capability
- Used in precision mechanical assemblies
DIN 125 Flat Washer
- Designed for normal flat surfaces
- Mainly increases bearing area
- No alignment compensation function
Product Advantages
Improved Load Distribution
DIN 6319 washers distribute clamping forces more evenly across the joint, helping prevent deformation and premature failure of components.
Reliable Precision Assembly
Ideal for applications requiring accurate positioning, repeatable tightening performance, and stable mechanical connections.
Common Questions
What is a DIN 6319 spherical washer?
DIN 6319 spherical washer is a self-aligning washer designed to compensate for non-parallel clamping surfaces and improve bolt load distribution.
What is the difference between DIN 6319 Type C, D, and G?
Type C is a spherical seat washer. Type D is a standard dished washer. Type G has an enlarged outside diameter and is mainly used for slotted holes.
Can DIN 6319 washers correct bolt misalignment?
Yes. When combined with suitable conical seats, DIN 6319 washers can compensate for bolt inclination caused by uneven surfaces. The standard allows compensation of angular deviations up to approximately 3°
Can you provide OEM manufacturing?
Yes. We offer customized dimensions, hardness requirements, coatings, laser marking, packaging, and private-label solutions.
