Faster Installation
Drills, taps, and fastens in one step, eliminating the need for pre-drilling and improving assembly efficiency.
DIN 7504P
Cross Recessed Countersunk Head Drilling Screws with Tapping Screw Thread
- Standard: DIN 7504P- 1982(Type H)
- Material: SUS304, SUS316, SUS410, Carbon Steel
- Size: ST2.9 – ST6.3
- Surface Treatment: Plain, Zinc Plated, HDG, Dacromet, Ruspert
- Thread Type: Tapping Screw Thread
- Min Order: 5000pcs
- Sample: Free sample (after quote)
- Delivery time: 30 Days
Product Overview
Product Application
DIN 7504P is a standard specification for cross-recessed countersunk self-drilling and self-tapping screws (the corresponding international standard is ISO 15482).
The most distinctive feature of these standard screws is their built-in drill point, which allows them to drill through and fasten directly into metal or wood surfaces without pre-drilling, enabling quick, one-step installation.

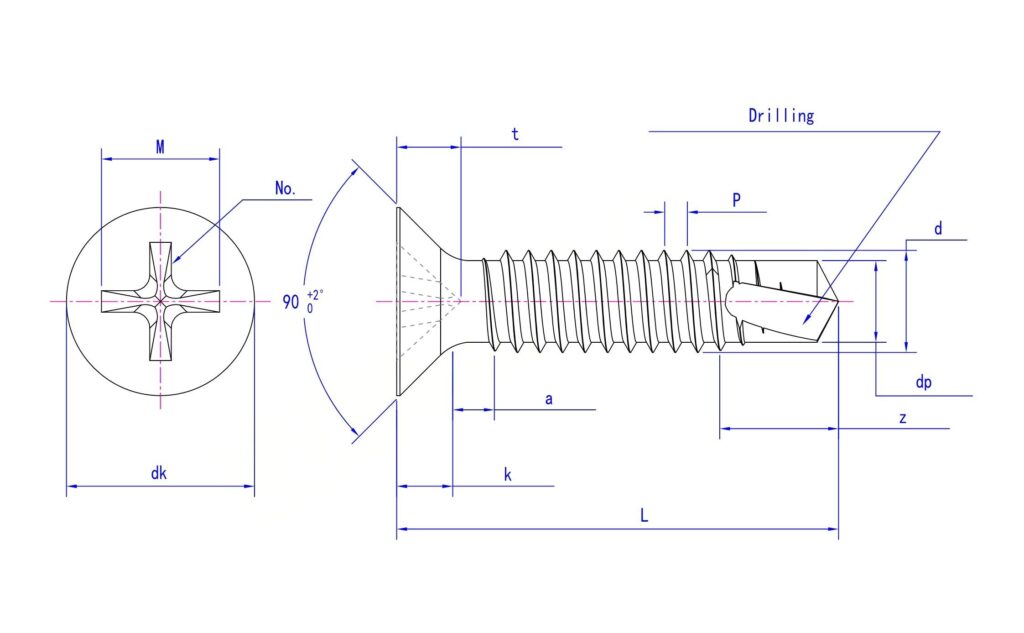

Draw

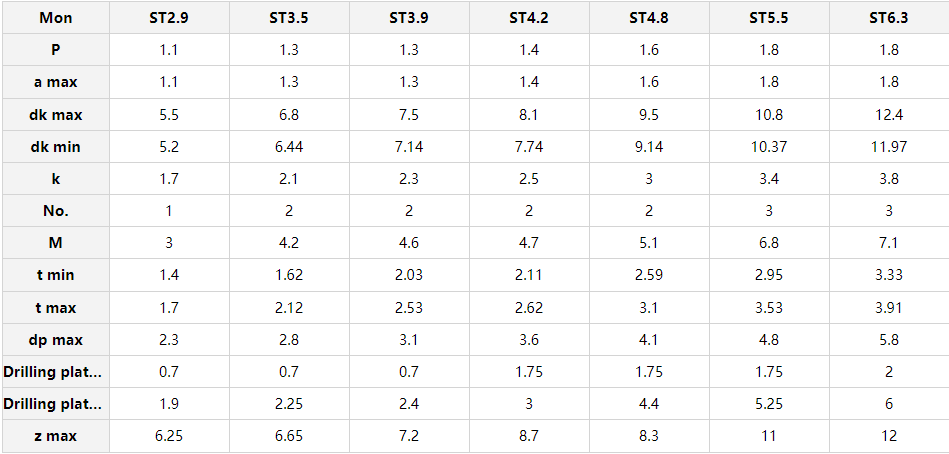

Specification
Key Design Features
-
Head Style: Countersunk / Flat Head. Once installed, the surface remains flush and does not protrude, making it ideal for structures requiring a smooth surface.
-
Drive Type: Typically Phillips (PH); some modern variants may use Torx (TX).
-
Tip Type: Features a self-drilling point, which effectively prevents the screw from wandering (non-walking).
Product Advantages
Flush & Clean Finish
The countersunk head sits flush with the surface, delivering a smooth appearance and reducing snagging risks.
Strong & Reliable Hold
Provides secure thread engagement with excellent vibration resistance, ideal for sheet metal, aluminum profiles, and light-gauge steel applications.
Common Questions
Does DIN 7504P require a pilot hole?
No. The drill-point tip is designed to drill and tap simultaneously in thin steel sections.
Why choose a countersunk head like DIN 7504P?
The countersunk head sits flush with the surface after installation, providing a smooth appearance and reducing protrusions.
Can DIN 7504P be used outdoors?
Yes. Stainless steel A2, 410 stainless steel, or corrosion-resistant coated versions are recommended for outdoor environments.
What materials can DIN 7504P fasten?
It is commonly used for steel sheets, aluminum profiles, light-gauge steel framing, and metal-to-metal connections.
